Do Want To Scan Barcodes Into Any Application On A PS2 Based PC?
 |
|
|
Availability: Awaiting Stock
|
|
|
|
• Light Ergonomic Design
• Includes Cable
• Keyboard Emulation
• No Software required
• Plug and Play
• Windows 98 SE, ME, XP, 2000, 2003
• Macintosh OS9 and OSX including 10.4
• Fully Programmable
• Ps2 (No Adaptor Required)
• Reads All Common Standard Barcodes
• Free Asset Software Included
|

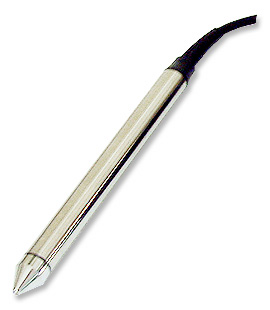

| Peninsula GoldenEye Barcode Reader Wand |
Specifications
Optical
Light Source
650nm ~ 660nm LED
Sensor
Photo Diode
Depth of Field
1mm (Contact scanner)
Resolution
0.127mm (5mil)
PCS
0.60 (Min.)
Tilt Angle
45 degree ~ 90 degree
Scan Speed
100mm/sec. (3.93in/sec) ~ 600mm/sec (23.62in/sec)
Physical
Dimensions
L140mm (5.51in) x W15mm (0.59in) x H15mm (0.59in)
Weight
40g (1.41 oz) without cable, 200g (7.05 oz) with cable
Cable
Coiled section 1.5 m (4.5ft) total length 2.5m (8ft) Environmental
Operating Temperature: 0 degree C ~ 50 degree C
Storage Temperature: -20 degree C ~ 60 degree C
Relative Humidity: 0%RH ~ 95%RH non-condensing
Mechanical Shock
1.85m Drop onto concrete
ESD Protected
Functional after 8KV discharge
Conformance
FCC class A, CE
Electrical
Supply Voltage
5VDC +/- 10%
Working Current
65mA +/- 10mA
Interfaces Available
PS2 6 pin mini din (PCAT 5 pin din with adaptor)
Barcode Types Supported
UPC-E, UPC-A, EAN-8, EAN-13, EAN-128, UCC 128, ITF 14, DUN 16, JAN 13, JAN 8, Code39, Code128, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, China Post Code, Code32, Italian Pharmacode, French Pharmacode, Codabar, NW7, Code93, MSI, Plessey, IATA, ISBN, ISSN, ISMN, Code IV.
|
